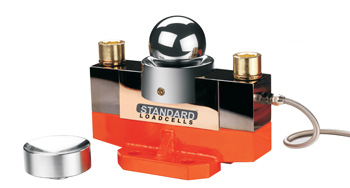

These are bridge type double ended shear beam loadcell with steel ball centre positioning design. They have high accuracy and side load tolerance, stable performance, and are used for electronic truck scale, rail scale, ground scale and other weighing system.
Bigger Sensing Element - For Better Linearity and Self Centering & Higher Performance
Forged Base (Patented) - Made of Single Piece and Not Welded for Higher Strength & Stability & More Reliability
Anti Lightning Protection for Surge Hit
IP68 Laser Welding
Better Anti Rust & Smart Look with Introducing New Platting Technique.
Suitable for electronic truck scale
Rail Scale, Ground Scale
Other electronic weighing devices
Standard Capacities ( T )
5, 10, 20, 30, 40, 50 T
Standard Specification :
Nominal Output 2.0 + 0.002mV/V
Accuracy Class C2 ~ C3
Non-Linearity +0.02%F.S (FS: Full Scale)
Creep (30 min) +0.02%F.S
Zero Balance +1%F.S
TC Effect on Zero & Span +0.02%F.S/10oC
Input Impedance 750 + 7 ohms
Output Impedance 701+4 ohms ( L≥15m)
Insulation Impedance ≥ 5000 M ohms
Temperature Range, Nominal -10 ~ +40oC
Temperature Range, Operating -30 ~ +70oC
Safe Overload 150% F.S
Ultimate Overload 300% F.S
Excitation, Recommed 10V ~ 12V DC
Excitation, Maximum 15V DC
Protection Class IP68 (10t ~ 50t )
Construction Alloy Steel
Cable Length L:16m (20t - 30t - 40t - 50t)
Mode of Connection +Input:Red      - Input:Black
+Output:Green - Output:White
